Cardiovascular

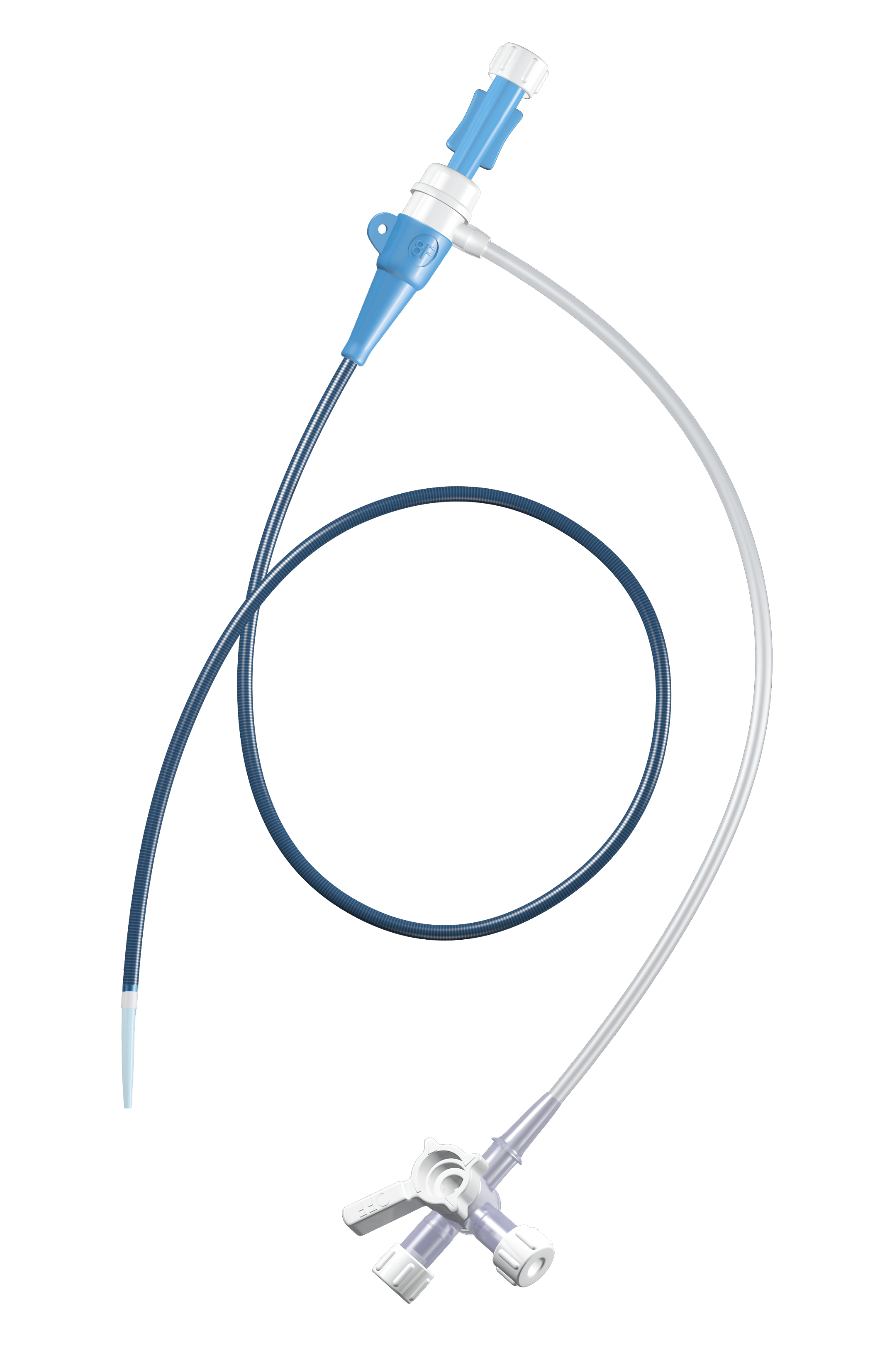

Introducer (coil type)

Medical use
Guidewires
Basic UDI-DI
5901297INTRODUCERSF7

The INTRODUCER is intended to establish vascular access and enable the percutaneous introduction and exchange of catheters, guidewires, or other interventional devices into the venous and/or arterial vasculature for diagnostic and therapeutic purposes.

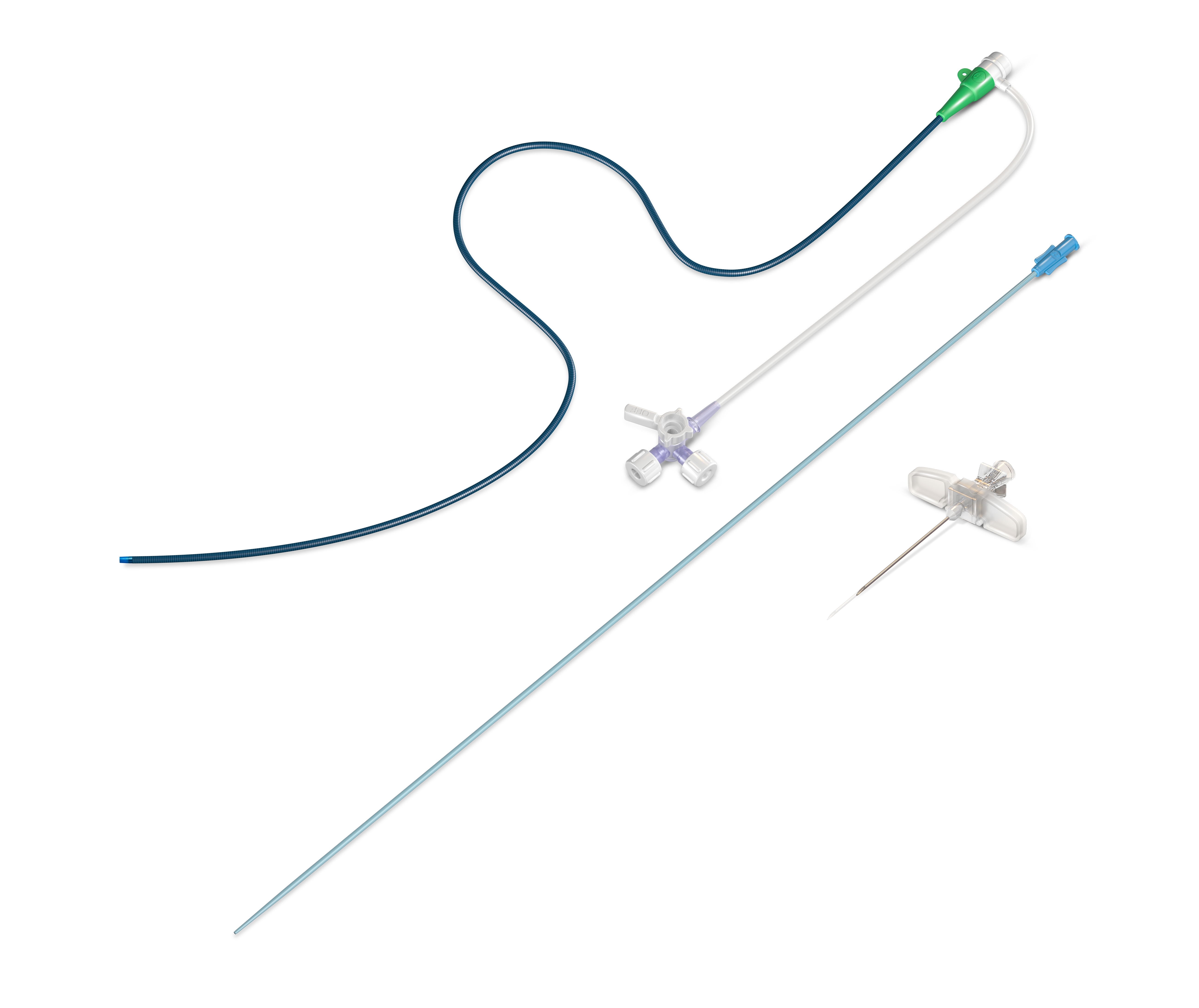

Set components:

  • Introducer sheath with valve and drain, with a three-way stopcock
  • Dilator
  • Needle

Intended purpose:

The INTRODUCER is intended to establish vascular access and enable the percutaneous introduction and exchange of catheters, guidewires, or other interventional devices into the venous and/or arterial vasculature for diagnostic and therapeutic purposes.

    Available versions

    Reference: Sheath
    size
    [F]    		 Sheath
    length
    [mm]    		 Dilator
    size
    [F]    		 Angiographic needle
    size
    [G]    		 Use with
    guidewire
    [inch]
    INT4F45T 4 450 4 19 0.022
    INT4F60T 4 600 4 19 0.022
    INT4F90T 4 900 4 19 0.022
    INT4F100T 4 1000 4 19 0.022
    INT5F45T 5 450 5 18 0.035
    INT5F60T 5 600 5 18 0.035
    INT5F90T 5 900 5 18 0.035
    INT5F100T 5 1000 5 18 0.035
    INT6F45T 6 450 6 18 0.035
    INT6F60T 6 600 6 18 0.035
    INT6F90T 6 900 6 18 0.035
    INT6F100T 6 1000 6 18 0.035
    INT7F45T 7 450 7 18 0.035
    INT7F60T 7 600 7 18 0.035
    INT7F90T 7 900 7 18 0.035
    INT7F100T 7 1000 7 18 0.035
    INT8F45T 8 450 8 18 0.035
    INT8F60T 8 600 8 18 0.035
    INT8F90T 8 900 8 18 0.035
    INT8F100T 8 1000 8 18 0.035
    INT9F45T 9 450 9 18 0.035
    INT9F60T 9 600 9 18 0.035
    INT9F90T 9 900 9 18 0.035
    INT9F100T 9 1000 9 18 0.035
